S-2Connect® Companion

Multi-room monitoring for the Pro1.

Companion is a battery-powered BLE sensor that measures temperature and humidity and reports the values to an S-2Connect® Pro1 device. All technical specifications are collected on this page.

View specificationsAsk about Companion

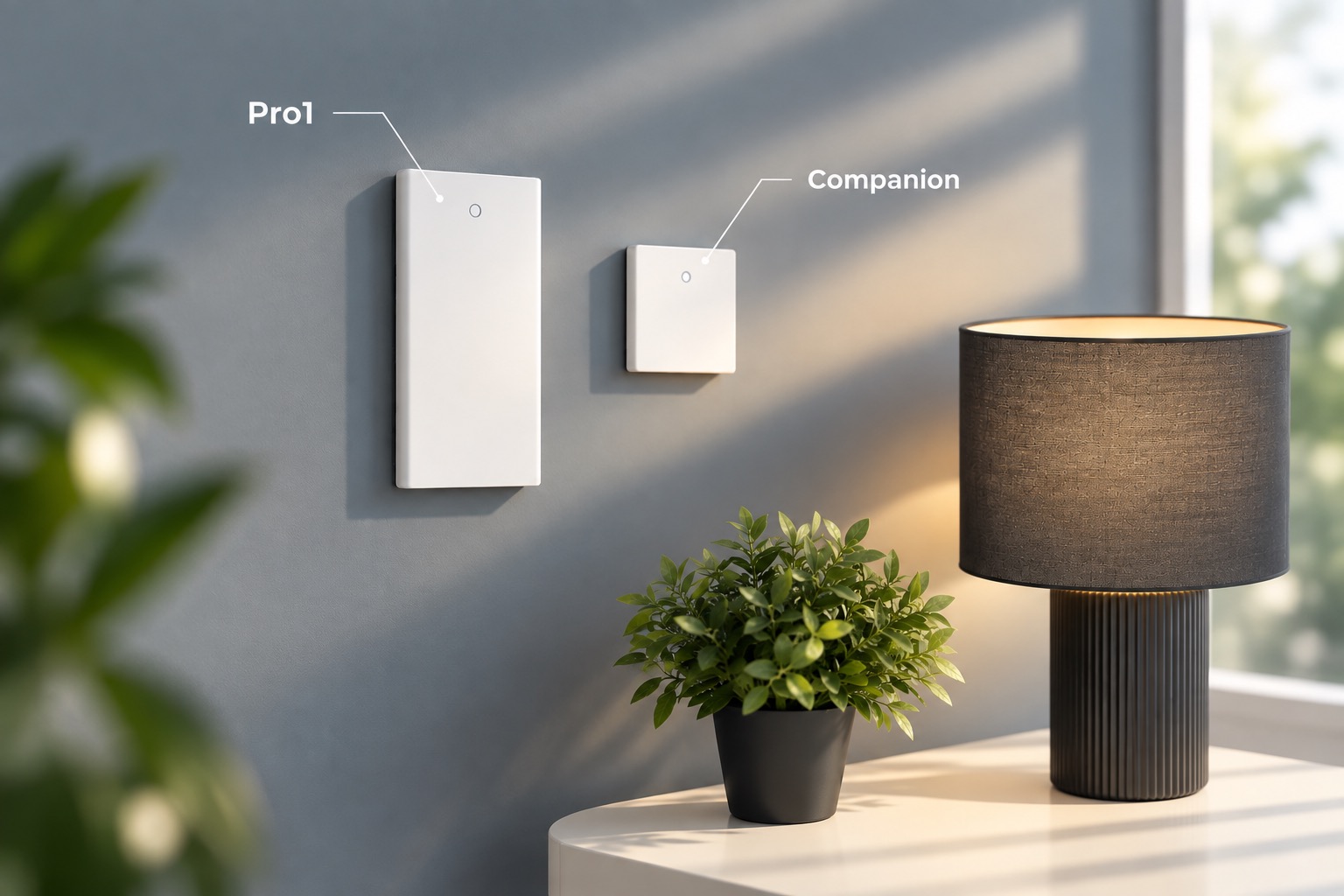

S-2Connect® Companion and Pro1 indoor monitors mounted on a wall
// Specifications

Technical specification.

SpecificationCompanion
Connectivity
RadioBLE 5 (nRF52840)
AntennaInternal
Frequency bandISM 2.4 GHz (2.4–2.48 GHz)
Firmware protocolBLE advertisements, channels 37, 38 and 39
GatewayReports to an S-2Connect® Pro1 device
Power
Battery2 × AA alkaline
Battery life10 years at +25°C
Sensors
Temperature tolerance (sensor IC)1±0.2°C typical; ±0.4°C max over +5°C to +60°C
Temperature long-term drift1< ±0.03°C/year typical
Humidity tolerance (sensor IC)1±2% RH typical; ±3.5% RH max over 20–80% RH
Humidity long-term drift2< ±0.2% RH/year typical
Enclosure and operating conditions
Enclosure protectionIP30
Outer dimensions82 × 68 × 22 mm
Operating temperature+5°C to +55°C
Operating humidity20–80% RH
Recommended storage temperature3+20°C to +25°C
Survivable storage range3−18°C to +55°C
Interfaces
PushbuttonOn/off control
LEDGreen, red and blue
Software
Operating systemZephyr RTOS
Installation
Wall mountingAdhesive or screws
  1. 1 Tolerance figures describe the sensor manufacturer's production testing of the sensor IC, not complete-device accuracy. Contamination from VOCs and long-term drift are excluded. Typical values are based on ±2 standard deviations, meaning 95% of parts are within the typical figure.
  2. 2 Humidity drift assumes no contaminant exposure and recommended operating conditions.
  3. 3 The recommended storage temperature maximises battery lifetime. The survivable range is the limit the device can be stored at, not a recommendation.
